1969 Camaro Exhaust System







1969 Camaro Exhaust System
1969 Camaro Big and Small Block Deep Tone Exhaust Kit. This kit includes 2 1/4" head pipes with correct flats and wrinkle bends, 2 1/4" over axle pipes 2" tail pipes with correct flats and angle cut. Correct muffler reproduced from an original will be included as well as extensions donuts and flanges. This kit includes all the correct rounded bottom and guillotine clamps. Correct two hole front hangers and right and left tail pipe hangers with correct screws and built in strap clamps. Small and big block heat risers are an option as well as stud kit with correct lock nuts. Chrome tail pipes and resonators which were standard depending the time of the year in which the vehicle is built are available and the chrome tail pipes are reproduced as original by building, cutting and welding the prechromed section back on. Kit will include installation instructions and diagrams for easy assembly. This particular kit shown here is for 1969 Camaro 396 with a concours show pkg.



1969 Camaro Chambered Exhaust System

For those of you who want to rattle your neighbors windows the chambered exhaust system is available for both 1969 Camaro Small Block and Big Blocks. This system came standard on your 1969 Z/28's and your High Horsepower Big Block Camaros up until Nov 19th. 1968. This system then became an option until around April 21st of 1969. The chambered exhaust system was never available with chrome tail pipes originally and Gardner Exhaust keeps it that way. Our chambered exhaust system comes standard with the correct 2 1/4" head pipes with wrinkle bends and flats, extensions, donuts, correct chevy small or big block flanges, correct 3" chambered tube with 2" over axle pipes welded in. The chambered tubes have the correct perforated internals and exact number of crimps as the original. The correct brackets are welded on the transverse chambered mufler and the muffler comes pre assembled. We include the correct 2" tail pipes with all the correct flats and angle cuts as well as the correct round bottom style clamps as original. Our exclusive chambered hangers kit comes hand built with the correct corded rubbers and rivets. Insatallation instructions and sealant come standard to ease in assembly. This system is not for the light hearted, if you do not like to make noise this system is not for you.

1969 Camaro Small Block Deep Tone Kit 1969 Camaro Big Block Resonator Kit

1969 Camaro Big Block Resonator Exhaust System Kit Camaro Big Block Resonator Exhast System Kit 969 Camaro Big Block Resonator Exhaust System Kit

1969 Copo Camaro Deep Tone Hemmings Muscle Car of the Year Owned By Tommy Thompson Equipped With Gardner Exhaust

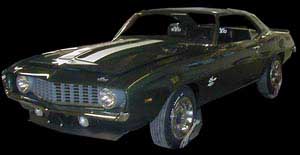

1969 Yenko Camaro Deep Tone System Restored By Flying A Restorations Equipped With Gardner Exhaust System

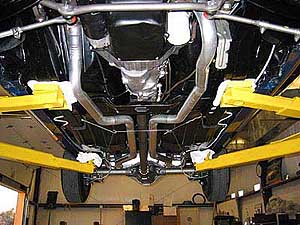

1969 Camaro Z-L1 Deep Tone Undercarriage Equipped With Gardner Exhaust System














1969 Camaro Z/28 Deep Tone Owned By John Hakanson Equipped With Gardner Exhaust
1969 Camaro Z-L1 Deep Tone Undercarriage 1969 Camaro Z/28 carriage With Gardner Exhaust
1969 amaro Z/ 2ith rdner Deep Tone System





" Mark

Th



69z28.mpg" width="200" height="300">

Eric,

I want to thank you and your team of engineers who provided me with my stock replacement factory correct exhaust system for my 1969 (X33D80) Z/28 Camaro.

We researched many exhaust companies to provide the factory correct parts and Gardner Exhaust was selected based on recommendations and many conversations with Eric Gardner. Eric provided the proper insight and advice needed for my restoration. I decided to go for the best money could buy and had it all fabricated by Gardner. When we received the parts, you instantly saw the quality from shipping to installation. I can officially confirm that the parts were perfect and the exhaust fits like a glove. The parts are all correct and the work was nothing short of exceptional. I want to thank the team at Gardner for their expertise, quality work and professionalism.

Sincerely yours,

Mark Thomas



1967-1969 Camaro Front Hanger:
This hanger is another Gardner Exhaust Exclusive Reproduction. Original hangers used backing plates, smaller rivets corded rubbers and two screw holes instead of five quite often seen in the aftermarket. Our exclusive hangers are built by hand to replicate the originals.
1969 Camaro Tail Hangers:
These hangers are another Gardner Exhaust Exclusive Reproduction. Original hangers used backing plates, smaller rivets and corded rubbers. Our hangers are hand built to replicate the originals and come with the correct tapping screws.
1967 -1969 Camaro Clamp
This is the exact correct clamp for the 1967-1969 Camaros. They were used in multiple locations and have been unavailable for many years. They are a Gardner Exhaust esclusive reproduction and are avalable in 2" and 2 1'4" versions. These clamps are available with one of our show quality exhaust systems.







1967 -1968 Camaro Clamp
This is the exact correct clamp for the 1967-69 Camaros. This clamp was used at the muffler inlet. The clamp seen here has not been available for a very long time. It is another Gardner Exlclusive reproduction and is availble with one of our show quality exhaust systems.











1967-1969 Camaro Dual Exhaust Right Over Axle Pipe:
This is the 2 1/4" pipe that connects to the end of the head pipe and goes into the transverse muffler on all dual exhaust camaros from 1967-1969. The pipe seen here was copied from the orignal next to it.

1969 Camaro Chrome Tail Pipes Our correct 2" tail pipes have been reproduced from the original in the picture and come with corrrect flats and angle cuts. Our tail pipes are cut as original sent for chrome plating and then fixtured back and welded back together.

1967-1969 Camaro Big Block Resonator left head pipe:
This pipe has been placed next to an original to show the reproduction authenticity.
All correct flats, wrinkles bends and reductions that were in the original are in our reproduction, as shown in this picture original resonators were welded to the head pipes.
