1970 Mopar E - Body Hemi Muscle Car Exhaust Systems
For the 1970 Model year there we offer only the two ground pounding high performance systems. The first is the HEMI. This system is reproduced from an original exhaust system. It consists of the correct 2 1/2" H - Pipe, with correct flanges, correct heat nipple welded on, correct flats in H - Pipe, correct resonator mufflers, correct 2 1/4" over the axle pipes with correct mufflers welded on. Date Coded mufflers are an option. The kit will also include the correct round bottom style mopar clamps, correct marsden nuts and bolts for front pipe installation, instructions, diagrams and sealant . The correct muffler hangers and tail hangers are an option as well as the correct tip for either the Challenger or Cuda. Q clamps are available as an option for the purist. Ask about our concours show package to keep that undercarriage looking nice.



1970 E - Body 440

The 1970 Challegner and Cuda 440 systems used the same resonators, tailpipes with welded on mufflers, hangers and hardware as the HEMI cars but had different front pipes. The head pipes on the 440 E- Body cars were 2 1/2" like the HEMI but they did not have a crossover pipe. We build these pipes as original with the correct welded on flanges, and correct flats. This kit comes with all the correct components like the HEMI cars.



1970 AAR Cuda and Challenger T/A

The 1970 AAR Cuda and Challenger T/A Exhaust systems are one of the more interesting exhaust systems ever devised by a manufacturer. This system made use of 2 1/4" head pipes that went into a muffler. The intersting thing about the muffler is both the inlet and the outlet were in the front of the muffler. This allowed a 2" tail pipe with a a chrome tip to come out the muffler and hang just before the rear wheel. Our exhaust systems have been reproduced from originals and come with the correct 2 1/4" head pipes with the flanges weldedd on, the correct muflers, correct chrome tips with baffle in side and correct round bottom mopar clams, and correct brackets and hangers as well as installtion instructions diagrams and sealant for ease of assembly. (Click Picture for Link to Page)

1970 340 Cuda and Challenger

The 1970 340 Cuda and Challenger Exhaust System has been absent from our reproduction process for some time. No longer is this the case. This system consisted of 2 1/4" head pipes, resonators, 2 1/4" tail pipes with mufflers welded to them and chrome tips if you got the decor package and turn downs if not. Our systems come reproduced from our original exhaust system. It comes as a kit with the correct 2 1/4" head pipes with correct flanges welded on, correct resontors, 2 /14" tail pipes with correct mufflers welded on with correct bracket, correct round bottom mopar clamps, correct front hangers and muffler hangers, correct q-clamps for tips installation instructions and diagrams. Ask about our concours show package for extra longevity. (Click Picture for Link to Page




1970 - 1971 E - Body 426 Exhaust System Kit
1970 - 1971 E - Body 440 Exhaust System Kit

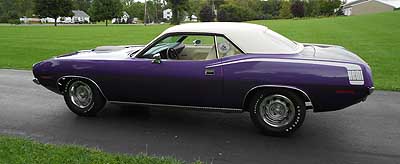

1970 Hemi Cuda Restored by Walter Hubbs and Kustom Concepts Equipped With Gardner Exhaust

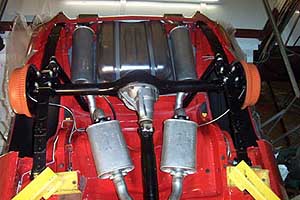

1970 440 Cuda Restored by Ken Adair Owned by Kevin Hand Equipped With Gardner Exhaust

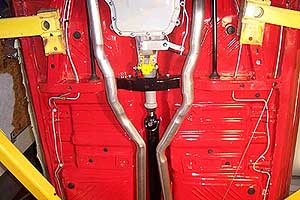

1970 440 Cuda Head Pipes Next To Gardner Reproduction

1970 - 1971 E - Body Tail Pipes Next To Gardner Reproductions


"

1970 - 1971 Mopar E - Body Muffler Hangers
Although this hanger is not our reproduction we have compared it to original hangers and they are a very nice reproduction. They come painted chassist black and are built with corded rubbers as original. We include a u - nut and screw for installation

1970 - 1971 Cuda Tips
Although thiese tips are not our reproduction we have compared them to our originals and they are a very nice reproduction. They come chrome plated as original and are avaialble with one of our Cuda kits.


1970 - 1971 Mopar E - Body Muffler Hangers
Although these hangers are not our reproduction we have compared them to original and they are an excellent reproduction. They come zinc plated, they also include the brackets that go through the trunk floor to attach the hangers. All the correct hardware is included for easy installation.








1970 2" Q-Clamps

The clamp pictured here is the correct clamp used on the 1970 Mopar E-Body exhaust system to attach the chrome tips to the tail pipes. Our clamps have been reproduced fron the orignal pictured here and come zinc plated for longevity
